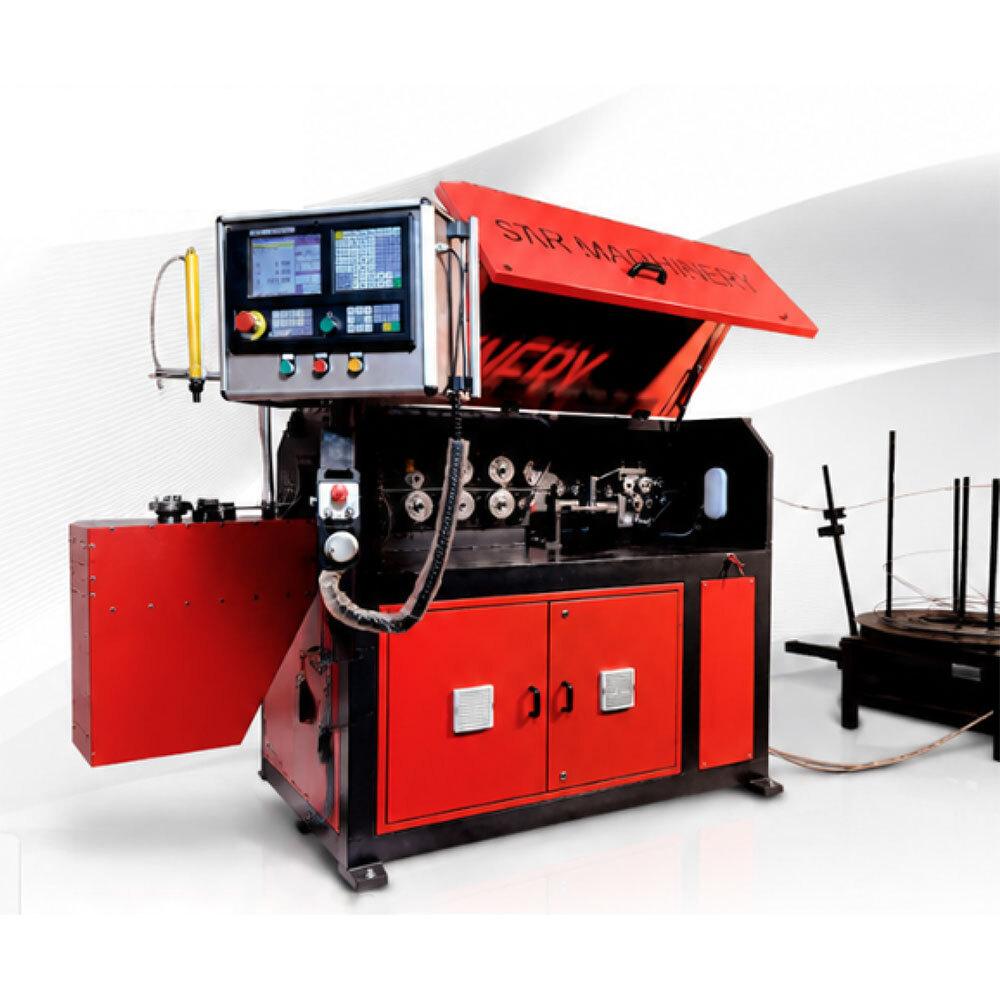

CNC 3D Wire Bending Machine 3-8Mm 4-axis

Name: CNC 3D Wire Bending Machine 3-8Mm 4-axis
Brand: STAR MACHINERY
Price: 1580000 INR
Availability: InStock

Price 1580000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

CNC 3D Wire Bending Machine 3-8Mm 4-axis Specification

Power
7.5 kW

Bending Speed
80-110 times/min

Production Capacity
Up to 120 pieces/min

Bending Strength
High

Condition
NEW

Place of Origin
China

Product Type
CNC 3D Wire Bending Machine

Color
Red

Motor Speed
Adjustable

Bend Radius
Adjustable, 3-50 mm

Usage
Industrial

Machine Type
4-axis Wire Bender

Automation
Fully Automatic

Dimension (L*W*H)
23009001850 mm

Voltage
380V / 415V

Output
Customized as per settings

Bending Angle
0-360

Capacity
3-8 mm wire diameter

Raw Material
Mild Steel

Phase
Three Phase

Weight
1200-1500 Kilograms (kg)

Control System
CNC Touch Screen Interface

Number of Axes
4-axis

Display Type
Touch Screen + Display Panel

Operating Environment
10C to 40C, non-condensing

Memory Storage
Multiple program storage capability

Precision
0.1 mm

Lubrication
Automatic lubrication system

Safety Features
Emergency Stop, Overload Protection

Material Compatibility
Steel, Stainless Steel, Aluminum wire

Wire Feeding Length
Unlimited, programmable

CNC 3D Wire Bending Machine 3-8Mm 4-axis Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
1 Unit Per Month

Delivery Time
1-2 Week

About CNC 3D Wire Bending Machine 3-8Mm 4-axis

Technical Details

Fully Automatic CNC Wire bending machine based on G-Code and M-code Programming and Hydraulic cutting system. Its suitable for 6 mm to 12 mm, MS wire and Upto 10 mm for SS Wire . Easy to program and very easy to Operate .

Superior Performance & Automation

Driven by CNC technology, this machine ensures consistent accuracy in wire bending. The 3D capability and automation not only enhance production speed but also minimize manual intervention, making it an ideal choice for manufacturers aiming for reliability and precision. Its 360-degree bending angle allows the creation of complex forms in less time.

High Strength and Versatile Material Handling

With a bending strength of up to 700 mpa, the machine can process both mild steel (MS) and stainless steel (SS), supporting diverse industrial requirements. The robust motor and automatic functionality work together to provide stable, continuous operation for heavy-duty tasks.

Efficient Output for Industrial Needs

Designed for high-volume environments, the wire bending machine offers rapid production at 4050 meters per minute. Every bend takes just 0.8 seconds, ensuring you meet deadlines efficiently while maintaining top-notch quality. The combination of power, phase, and voltage supports uninterrupted, high-performance operation.

FAQs of 3D Wire bending machine:

Q: How does the 3D Wire Bending Machine operate in an industrial setting?

A: The machine is fully automatic and uses CNC technology to program wire shapes efficiently. Operators load MS or SS wires, input specifications, and the machine precisely bends the wire to the desired shape and angle up to 360 degrees.

Q: What materials can be processed using this wire bending machine?

A: This equipment handles mild steel (MS) and stainless steel (SS) wires, both commonly used in industrial applications requiring strength and versatility.

Q: When is it ideal to use this wire bending machine?

A: The machine is best suited for high-volume industrial manufacturing processes, particularly when complex wire shapes and fast, repeatable bending cycles are needed.

Q: Where is the machine manufactured and exported from?

A: The machine is designed and manufactured in India, and is available for export, supply, and distribution to various global markets.

Q: What is the process for bending wire with this machine?

A: Operators feed raw MS or SS wire into the machine, set the desired bending angles and shapes using the CNC interface, and the machine automatically executes precise bends in rapid succession.

Q: How does the machines performance benefit manufacturers?

A: Its high power (17 HP), speed (2500 RPM), and CNC automation combine to boost production rates, improve accuracy, reduce labor, and ensure consistent qualityultimately increasing overall efficiency.

Q: What is the typical usage output of the machine?

A: This automatic wire bender delivers output rates of about 4050 meters per minute, enabling manufacturers to meet demanding supply schedules with consistent throughput.

Technical Details

Superior Wire Bending Precision

Achieve intricate wire forms with a precision level of 0.1 mm using our CNC 3D Wire Bending Machine. The 4-axis control system, paired with a user-friendly touch screen, enables operators to set and repeat complex bending patterns consistently. The high bending strength and variable bend radius make it ideal for demanding industrial applications requiring accuracy and repeatability.

Flexible Material Compatibility

This wire bender accommodates steel, stainless steel, mild steel, and aluminum wires ranging from 3 to 8 mm in diameter. Whether you need to process different wire types or switch between projects, the machine's programmable controls and material versatility offer reliable performance across a variety of industrial manufacturing settings.

Designed for High-Volume Production

With a capacity of up to 120 pieces per minute and support for unlimited wire feeding lengths, this fully automatic system is tailored for large-scale production environments. The machine includes automated lubrication and comprehensive safety features such as emergency stop and overload protection, ensuring smooth, continuous operation with minimal downtime.

FAQ's of CNC 3D Wire Bending Machine 3-8Mm 4-axis:

Q: How does the CNC 3D Wire Bending Machine ensure precise and consistent bends?

A: The machine uses a 4-axis CNC control system with a high-resolution touch screen interface, enabling programming and storage of multiple bending sequences. Its position feedback system achieves bending precision up to 0.1 mm and allows repeatable, accurate bends for complex wire shapes.

Q: What types of wires are compatible with this wire bending machine?

A: This machine is designed for steel, stainless steel, mild steel, and aluminum wires with diameters between 3 and 8 mm. Its robust construction and adjustable settings make it suitable for processing various wire materials commonly used in industrial manufacturing.

Q: When is this machine most beneficial in an industrial manufacturing process?

A: The CNC 3D Wire Bending Machine excels in high-volume, repetitive tasks requiring precise and flexible wire shapes. It is ideal for automotive, construction, appliance, and furniture manufacturing operations seeking reliable, automated wire forming solutions.

Q: Where should the machine be installed for optimal performance?

A: For safe and efficient operation, install the machine in an indoor, non-condensing industrial environment with a temperature between 10C and 40C. Ensure adequate ventilation and stable three-phase power supply of 380V or 415V for seamless performance.

Q: What is the process for programming custom wire forms with this machine?

A: Operators use the CNC touch screen interface to input or select specific bending programs according to required wire forms. The system supports saving multiple programs, allowing easy retrieval and switching between different production setups as needed.

Q: How does the automatic lubrication system benefit daily operation?

A: The integrated automatic lubrication system minimizes machinery wear, ensuring smoother motion of moving components and reducing maintenance intervals. This helps maintain consistent output quality and prolongs machine lifespan.

Q: What safety features are integrated into the CNC wire bender?

A: The machine provides essential safety measures including an emergency stop button and overload protection, safeguarding both operators and equipment from accidental injuries or mechanical damage during operation.
