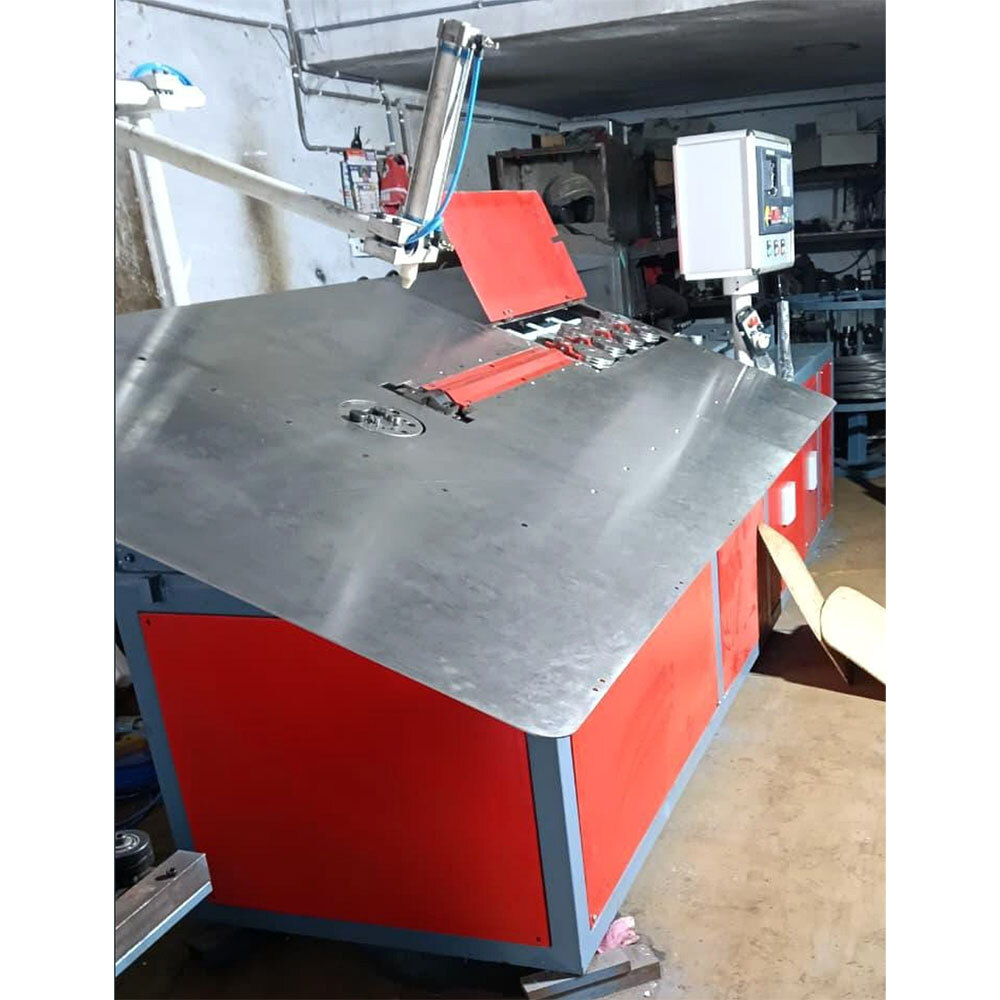

Cnc 2D Wire Bending Machine 3 Axis

Name: Cnc 2D Wire Bending Machine 3 Axis
Brand: STAR MACHINERY
Price: 1180000.0 INR
Availability: InStock

Price 1180000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Cnc 2D Wire Bending Machine 3 Axis Specification

Production Capacity
Up to 15 pieces per minute

Bending Angle
0 - 180 degrees (Programmable)

Motor Speed
2800 RPM

Bending Speed
Up to 40 m/min

Product Type
Wire Bending Machine

Machine Type
CNC 2D Wire Bending Machine

Condition
NEW

Automation
Automatic

Voltage
380V

Color
Red

Weight
1200 kg

Output
3 Axis

Power
5 kW

Dimension (L*W*H)
2200 mm x 1100 mm x 1450 mm

Phase
Three Phase

Bend Radius
Customizable as per design

Raw Material
Steel Wire / Metal Wire

Capacity
2 mm - 8 mm wire diameter

Usage
Industrial

Place of Origin
India

Bending Strength
Up to 1200 N/mm2

Repeatability Accuracy
0.2 mm

Wire Feeding
Automatic straightener and feeder

Noise Level
75 dB

Applicable Wires
Mild steel, stainless steel, galvanized iron, copper, and aluminum wires

Safety Features
Emergency stop, Overload protection

Power Supply
3 Phase, 50 Hz

Lubrication System
Centralized automatic lubrication

Control Type
PLC based with Touch Screen HMI

Operating System
Windows based software

Service Support
On-site technical support available

Memory Storage
Supports multiple program storage

Cnc 2D Wire Bending Machine 3 Axis Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
1 Unit Per Week

Delivery Time
7-10 Days

About Cnc 2D Wire Bending Machine 3 Axis

Technical Details

XY Axis Working Area	600 x 900 mm
Wire Diameter	6 mm
Wire Bending Angle	360 Deg
Wire Working Capacity	2 to 6 mm.
Maximum Feed Length	as per requirement1.5
Maximum Feed Speed	40 to 60 meter/minute
Wire Bending Radius	180 degree
Machine Dimension	2.5m x 1.2 m x 2 m.
Machine Weight	1440kg
Machine Condition	New

High-Precision Automatic Operation

The CNC 2D Wire Bending Machine operates fully automatically, allowing for quick setup and consistent production quality. Its computerized controls enable intricate and precise wire bending for diverse industrial applications, reducing labor costs and improving overall efficiency.

Industrial-Grade Build and Design

Engineered with a strong frame weighing 1220 kg, this machine is built to endure rigorous industrial environments. Its sizable 2900x750x850 mm dimensions and vivid red color ensure durability and visibility on the production floor, enhancing workplace safety and equipment longevity.

Export Quality and Local Expertise

Manufactured and supplied by experienced Indian exporters, manufacturers, and suppliers, this machine meets international quality standards. It is trusted by businesses globally and in India for its reliability, performance, and after-sales support, making it a valuable addition to modern manufacturing setups.

FAQ's of Cnc 2d Wire Bending Machine:

Q: How does the CNC 2D Wire Bending Machine operate automatically?

A: The machine uses programmable CNC controls to automate the wire bending process, requiring only initial setup by the operator. After programming the required specifications, the machine executes the wire bending operation consistently without manual intervention.

Q: What types of applications is this wire bending machine suitable for?

A: This CNC 2D Wire Bending Machine is suitable for a wide range of industrial applications, including manufacturing of wire components, custom parts, automotive springs, frames, and various architectural or engineered wire forms.

Q: When should industries consider using an automatic wire bending machine?

A: Industries should opt for an automatic wire bending machine when they require precise, high-volume, or rapid production of wire shapes, aiming to enhance productivity and reduce manual labor in repetitive manufacturing processes.

Q: Where is the CNC 2D Wire Bending Machine commonly used?

A: It is primarily used in industrial manufacturing units, fabrication plants, automotive part production, and warehouses needing reliable, large-scale wire bending capabilities.

Q: What is the typical process of wire bending using this machine?

A: The typical process involves feeding the wire into the machine, inputting the desired bend design and measurements into the CNC controller, and allowing the automatic system to shape the wire according to the programmed parameters.

Q: How does this machine benefit manufacturers and suppliers?

A: By automating wire bending tasks, the machine greatly improves operational efficiency, ensures consistent product quality, and reduces labor costs, thereby increasing overall profitability for manufacturers and suppliers.

Precision and Versatility Combined

This CNC 2D Wire Bending Machine seamlessly bends wires between 2 mm and 8 mm in diameter, maintaining exceptional accuracy of 0.2 mm. Its programmable system supports custom bend radii and complex designs, making it suitable for a range of industrial applications. Every aspect, from automatic wire feeding to touch screen operation, is aimed at maximizing productivity and reducing manual intervention.

Enhanced Operation and Easy Integration

Equipped with a Windows-based operating system and PLC control, users find programming and operation straightforward. The centralized lubrication system minimizes maintenance downtime, while the low noise level (75 dB) ensures a safer, more comfortable workspace. The machine's memory stores multiple program settings, allowing quick transitions between designs.

Robust Support and Built-in Safety

This CNC 2D wire bender prioritizes safety with emergency stop and overload protection. Customers benefit from on-site technical support for installation, operation, and troubleshooting, making it easy to adopt this machine into existing production lines. Manufactured in India, it is widely trusted by exporters, manufacturers, and suppliers for its reliability and performance.

FAQ's of Cnc 2D Wire Bending Machine 3 Axis:

Q: How does the CNC 2D Wire Bending Machine ensure consistent wire bending accuracy?

A: The machine uses high-precision servo motors and a PLC-based control system, achieving repeatability accuracy of 0.2 mm. Automatic straighteners and feeders maintain precise alignment and tension, ensuring consistent results with every cycle.

Q: What types of wire materials can be processed with this machine?

A: It handles a variety of wire materials, including mild steel, stainless steel, galvanized iron, copper, and aluminum, with wire diameters ranging from 2 mm to 8 mm.

Q: When should the centralized lubrication system be checked or refilled?

A: The centralized automatic lubrication monitors its own levels, but it's recommended to check or refill during scheduled maintenance intervals or if the system alerts for low lubrication. Regular maintenance keeps the moving components in optimal condition.

Q: Where is technical support available for installation and troubleshooting?

A: On-site technical support is offered throughout India, ensuring smooth installation, setup, and ongoing technical assistance for customers.

Q: What is the process for programming different wire bending designs?

A: Operators use the touch screen HMI and Windows-based software interface to program, modify, and store multiple designs. The machine can quickly switch between program settings, facilitating fast production changes.

Q: How does the safety system protect the operator during usage?

A: Built-in safety features include an emergency stop button and overload protection, immediately halting operation if unsafe conditions are detected, thereby protecting operators and the machine.

Q: What are the main benefits of using this automatic CNC wire bending machine in industrial settings?

A: Benefits include high-speed output (up to 15 pieces per minute), reduced manual labor due to automation, customizable bending options, multi-material capability, comprehensive safety features, and robust on-site support.
